Smartboatia Hub

Your boat knows more than it shows you.

13 devices. Or one Hub that thinks with you. On board and ashore.

€999.00

incl. VAT, plus shipping

  • Works without a subscription. For good. The Standard subscription is an extra, and the first year is included.
  • 30 day trial. If it does not fit, you send it back. How it works
  • Made in the EU. Developed and assembled in Travemünde. How the Hub is made
  • One cable to your boat network. Fits Raymarine, B&G, Simrad, Garmin and any NMEA 2000 network. Which cable fits depends on your boat, so you choose it separately. Which cable do I need?

Keep an eye on it from ashore, too. As soon as your boat has Wi-Fi or mobile coverage, you see it in the app. How this works

What the Hub does for you

Answers instead of numbers

Your instruments show values that come and go. The Hub remembers them, connects them and tells you what they mean.

Logbook

Where were we last summer?

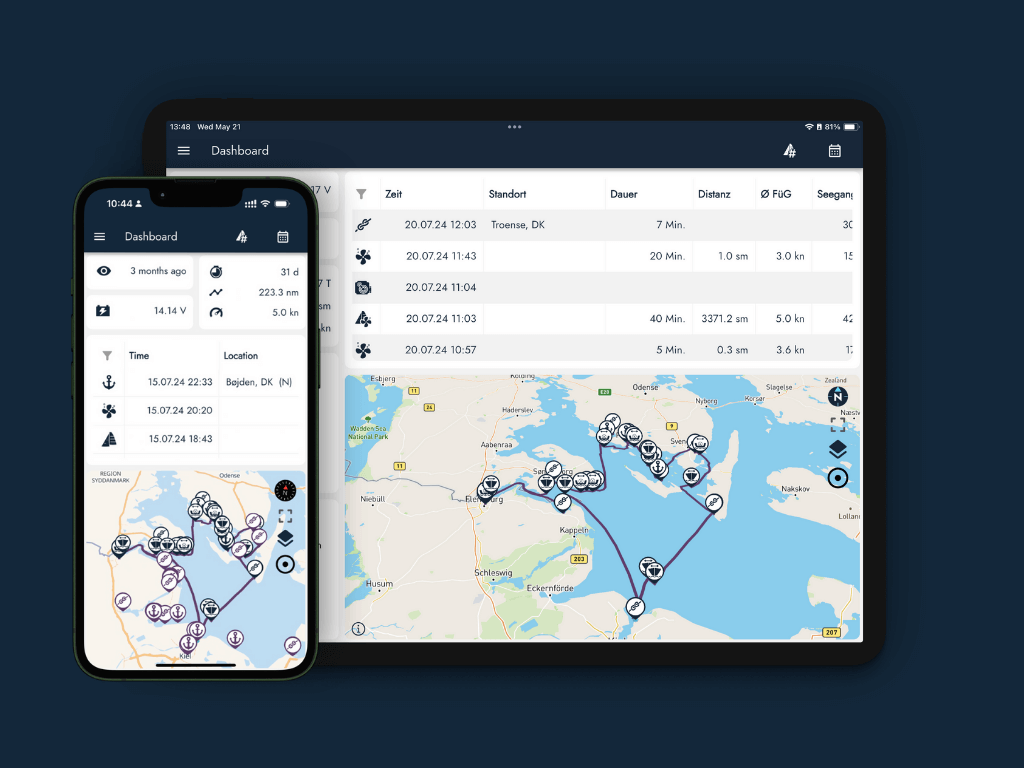

Your logbook writes itself. The Hub recognises casting off, anchoring and mooring, and records every trip with distance, wind and manoeuvres.

Boat monitoring

Is the anchor holding? Is the battery fine?

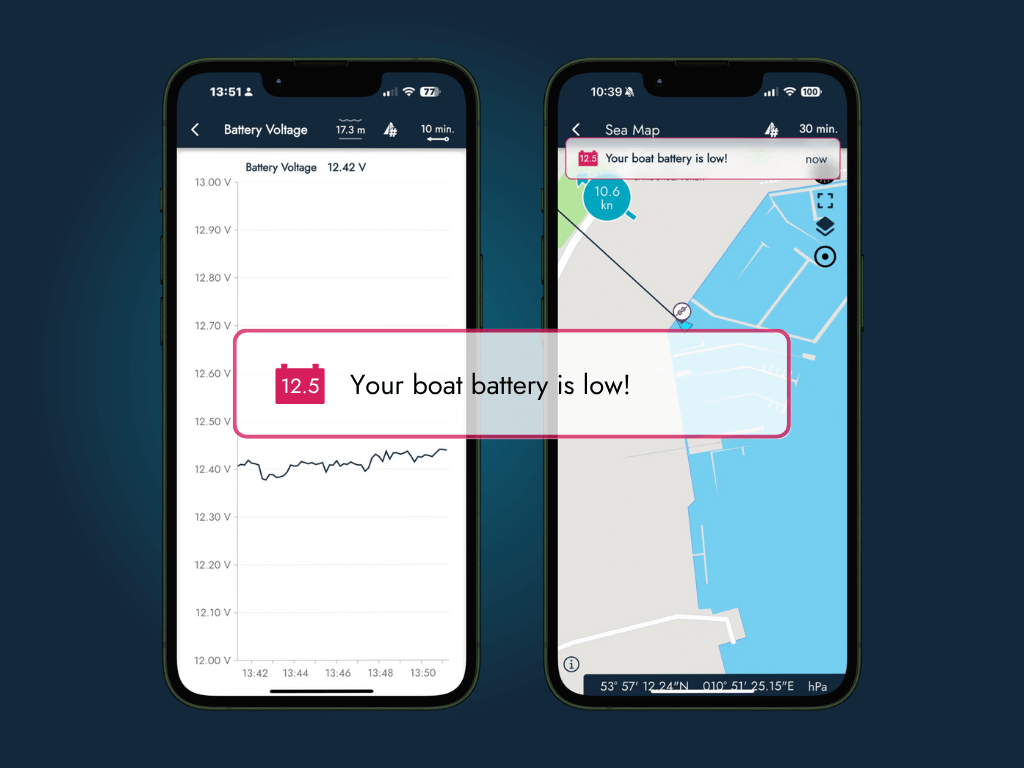

If your boat leaves the anchor circle or the on-board voltage drops, the Hub sounds an alarm on board. If your boat has a network connection, you also get a message on your phone.

Weather & environment

Is the wind steady, or does it keep shifting?

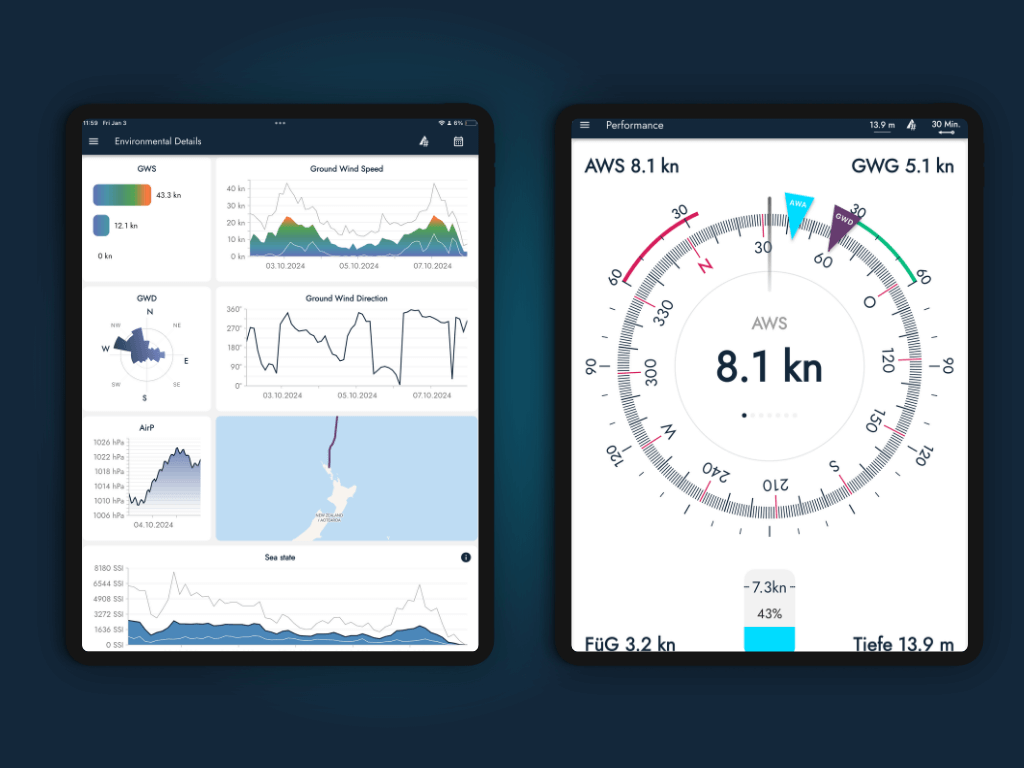

The Hub records wind direction, wind speed, gusts and air pressure as a trend. At a glance you see whether the day is gusty, whether the wind is shifting and whether the pressure is falling. Measured at your boat, with an air pressure sensor that the German Weather Service has tested.

Community & sharing

Who is anchoring in the next bay?

On the chart you see where your boat friends are right now, via AIS or the internet. So you meet up instead of anchoring one bay further on. You share pictures and videos of your trip with #sailorsgram.

Sailing performance · for sailing boats

What can my boat really do?

Your own trips produce polars, trim hints and an analysis of your tacks and gybes.

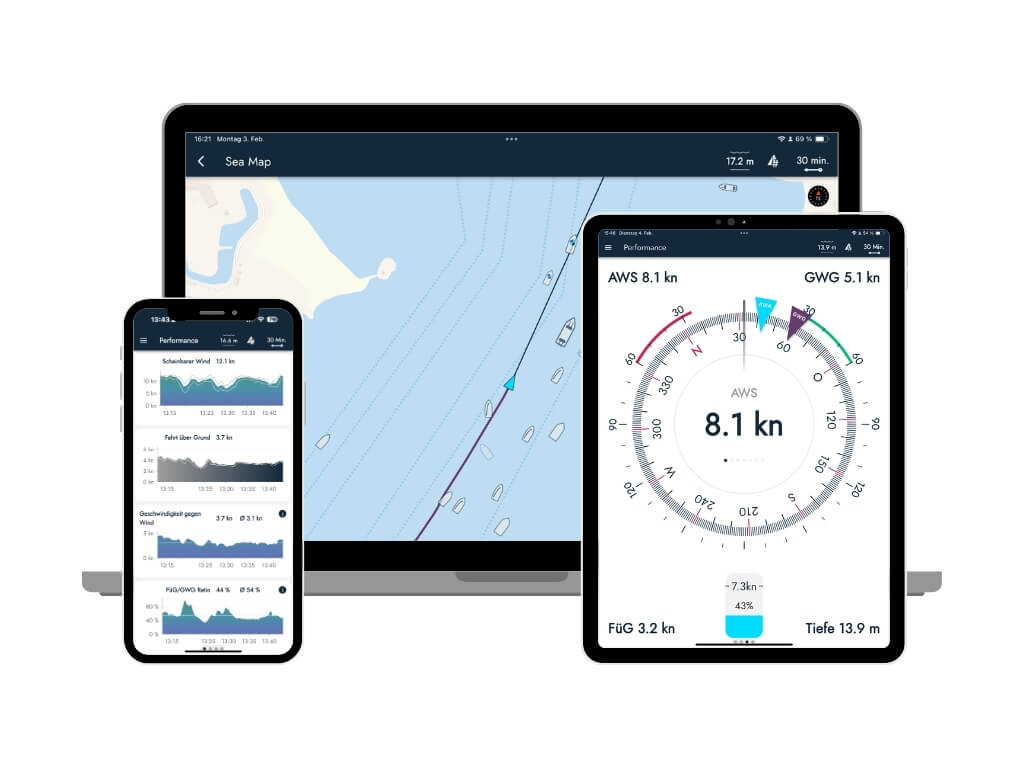

Smartboatia app on a tablet and a phone with instruments and chart

The Hub works on its own. The app shows you everything.

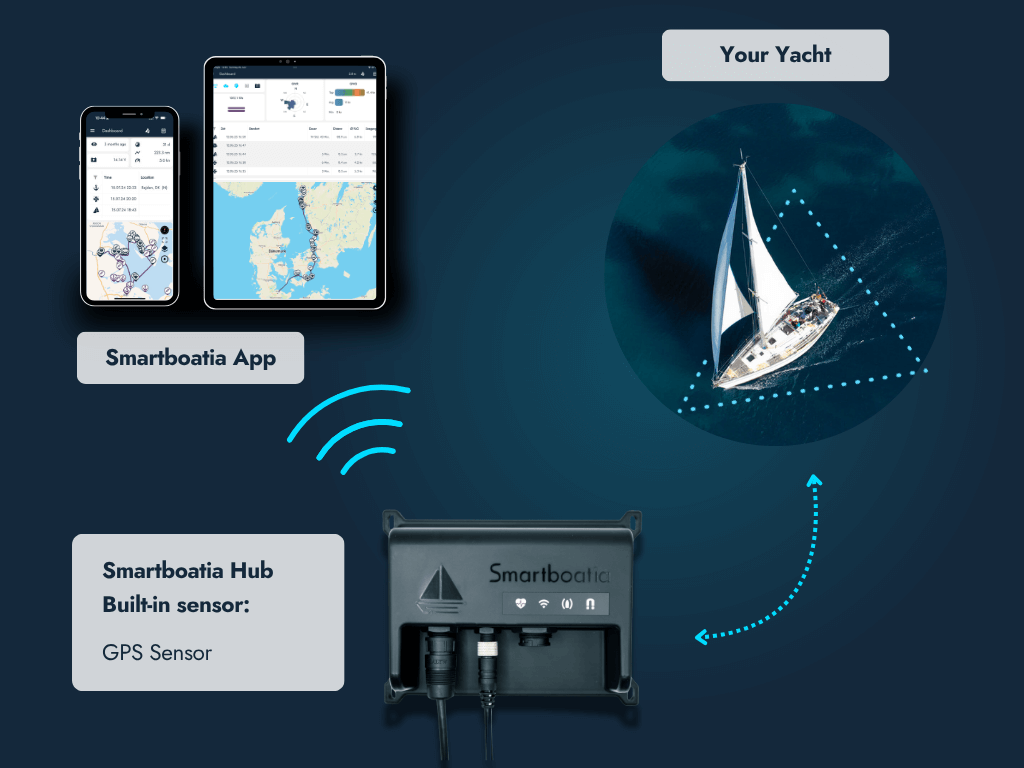

Once installed, the Hub runs independently of the app. It reports anchor alarm and battery alarm on board with its built-in signal tone, even when phone and tablet are off. You see instruments, chart, logbook and alarms in the Smartboatia app.

13 devices. Or one Hub that thinks with you.

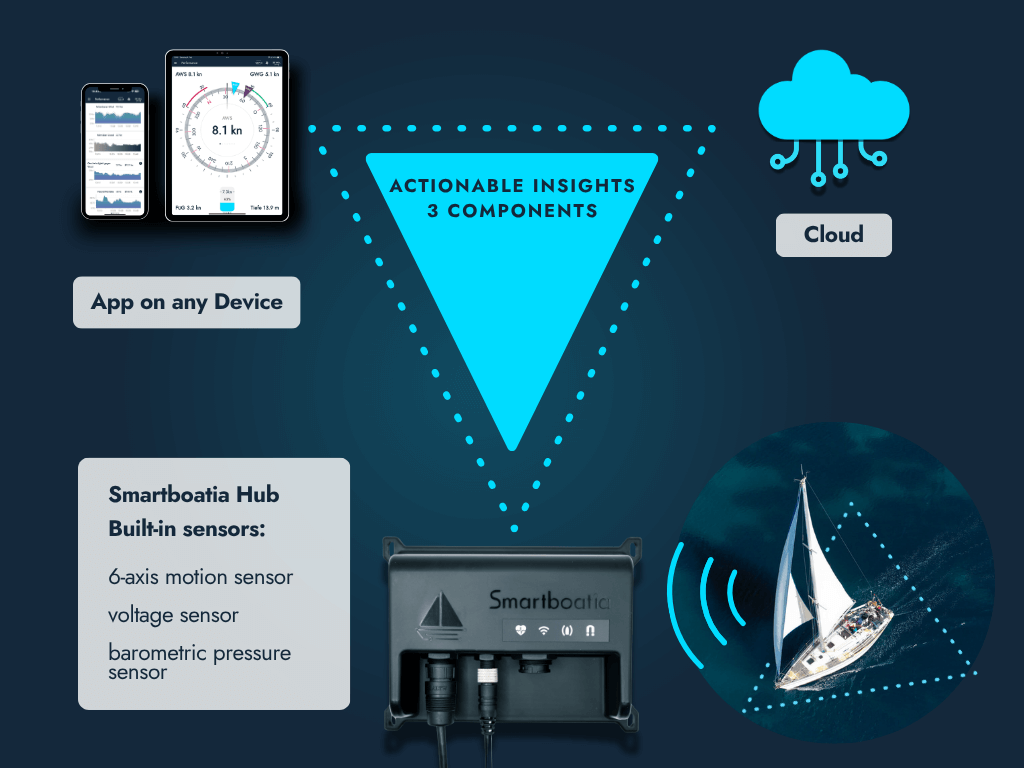

The Hub replaces what otherwise lies around on board as separate devices. And because everything comes together in one device, it connects the values. No single device can do that.

On board and ashore

Is my boat safe at anchor or in the harbour?

Even when you are not on board, you reach your boat in the app as soon as it has a network.

A phone showing the Smartboatia app, with boats at anchor in the background

With Wi-Fi in the harbour

The Hub joins the harbour Wi-Fi. You see where your boat is, how the battery is doing and whether everything is fine. This works without a subscription.

With mobile data in the Hub

With the Standard subscription, the Hub has its own mobile connection. Your boat is then reachable even without harbour Wi-Fi, wherever there is mobile coverage.

Without a network, the Hub still records everything. You see it as soon as your boat is back online.

What sailors experience with Smartboatia

“We have been using Smartboatia on our round-the-world sailing trip for two years and don’t want to sail without it anymore. Based on the recorded data, we make better decisions while sailing. This gives us safety and makes many things easier.”
Tessa & Hartmut Ludwig
SY Mersoleil · Circumnavigation
“My favorite feature of Smartboatia is the automatic logbook: it is a real time-saver and I can see where I have been sailing at any time. Also, the remote access gives me a huge sense of security: I can see the water level, wind values and whether my boat is safely in the harbor from home, without having to go there myself.”
Stephan
SY Hanna · Travemünde
“The automatic logbook function is one of the best features of Smartboatia for me. I can track my voyages at any time, and the software gradually learns my boat’s characteristics. The graphical representation of wind and weather changes helps me assess conditions. I also appreciate being able to revisit my voyages later, alone or with friends.”
Christian Blunck
SY DECIBEL

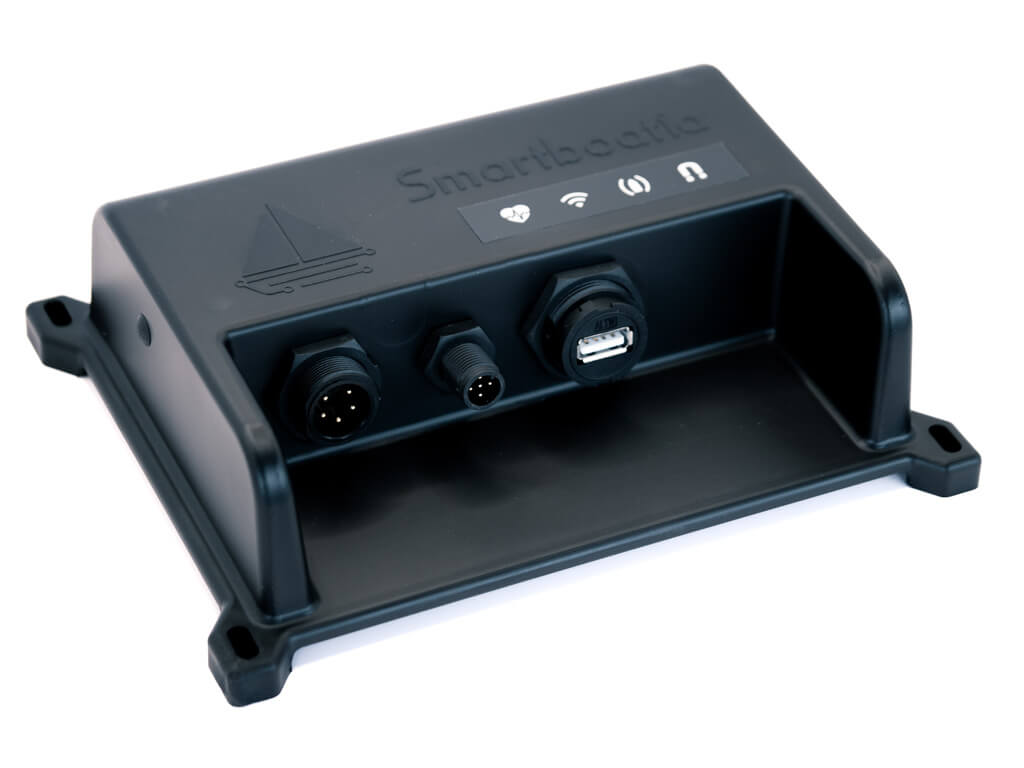

Smartboatia Hub installed on board

Installed in under 30 minutes

You need no tool except a screwdriver.

  1. 1Screw it down. In a dry spot below deck.
  2. 2Connect the power. 12 or 24 volts, the cable is included.
  3. 3Plug it into the boat network. One cable to your NMEA 2000 network, and the shop has the right one for every manufacturer.

View the installation guide

The right cable for your boat

One cable, and the Hub is on your boat network. Which one you need depends on your boat network. So that you get neither five cables nor the wrong one, none is included.

The cable advisor asks in three steps what you have on board and suggests the right one. You put it straight into the cart.

1

Bus system

Which system do you have on board? NMEA 2000, SeaTalk NG, SimNet and more.

2

Free port

Is a port still free, or do you need a T-piece?

3

Distance

How far is the Hub from the boat network?

To the cable advisor

Technical data

Computer and storage

ProcessorRaspberry Pi Compute Module 4, Broadcom BCM2711, 4 cores Cortex-A72, 1.5 GHz
Memory4 GB
Storage32 GB eMMC, around 26 GB for logbook and measurements
UpdatesAutomatic over the internet, with a second system partition as fallback

Radio and connections

Wi-Fi to the harbour2.4 and 5 GHz, Wi-Fi 5 (802.11ac)
On-board Wi-FiOwn access point, 2.4 GHz, Wi-Fi 6 chip
Mobile dataLTE-M and NB-IoT, SIM built in, usable with the Standard subscription
Bluetooth5.0 and 5.1, built in. Functions for it will follow.
GPSBuilt in

Sensors and alarm

Air pressureBosch BMP390, tested by the DWD: two devices measured in a calibration laboratory, deviation at most 0.14 hPa
Motion sensor6 axis motion and acceleration sensor for heel, trim and sea state
On-board voltageMeasured through the power supply
AlarmBuilt-in signal sounder
ClockReal-time clock with backup battery

Device and power

PortsNMEA 2000 (Micro-C, male), USB, power
Power supply8 to 28 V DC, protected by 3 A
Consumption2 to 3 W in normal operation

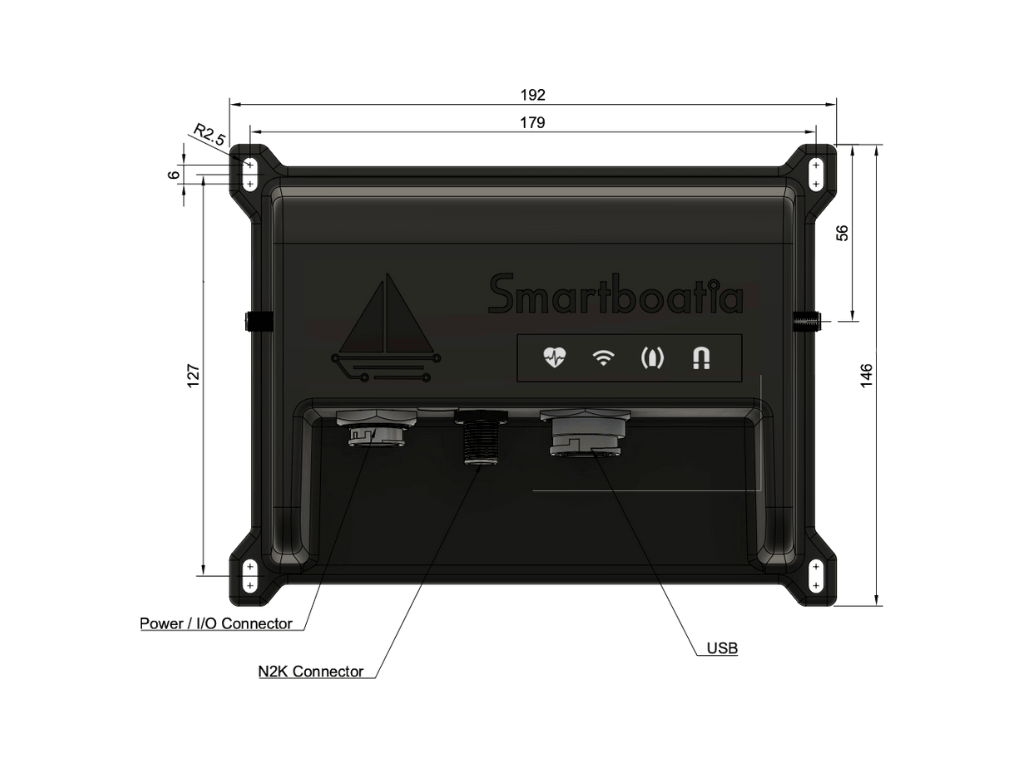

Dimensions192 × 155 × 48 mm
Weight360 g
ProtectionSplash proof. Install in a dry spot below deck.
In the boxHub, power cable 1 m, carrying case. You add the cable to the boat network that fits your boat.

The Hub is yours. The subscription is an extra.

The Hub works without a subscription, for good. The Standard subscription adds extras such as mobile data in the Hub and official sea charts. The first year is included with the Hub.

What works with and without a subscription

Frequently asked questions

Does the Hub fit my boat?

The Hub connects to your boat's NMEA 2000 network and fits Raymarine, B&G, Simrad, Garmin and any other NMEA 2000 network. The cable advisor shows you which cable you need.

Is the cable to the boat network included?

No. A different cable fits depending on your boat network, so none is included. The cable advisor shows you the right one, and you put it straight into the cart. The power cable is included.

Do I need a subscription?

No. The Hub works without a subscription, for good. The Standard subscription is an extra, and the first year is included with the Hub. What works with and without a subscription

Does the Hub work without internet?

Yes. On board, the Hub creates its own Wi-Fi, and phone and tablet show everything live. The Hub stores everything on the device itself for a good year.

How do I reach my boat when I am not on board?

As soon as your boat has Wi-Fi or mobile coverage, you see it in the app. Mobile data in the Hub comes with the Standard subscription. Without a network, the Hub keeps recording. Learn more

How long does installation take?

Under 30 minutes: screw it down, connect the power, plug it into the boat network. View the installation guide

Can I return the Hub?

Yes. You have 30 days to try it. If it does not fit, you send it back. How it works

What happens if I cancel the subscription?

The Hub simply keeps working. What ends with the subscription is on the subscription page.

Which boats is the Hub for?

For motor and sailing boats in recreational boating, not for commercial shipping. Sailing performance is available for sailing boats.

Product safety and manufacturer details

Manufacturer

Smartboatia GmbH

Teutendorfer Weg 37

23570 Lübeck

Deutschland

info@smartboatia.com

www.smartboatia.com

Product

Smartboatia Hub, version 1.1
Article number SB-HUB-01
Serial number on the type plate

Conformity and disposal

CE marked
WEEE Reg. No. DE 56611663
Do not dispose of with household waste. Disposal and battery

Safety notes

Warning: Failure to observe the following warnings and safety instructions may result in an accident causing serious or even fatal injury. It may also cause damage to the device, fire, chemical burns, electrolyte leakage and/or injury.

  • Battery: The device contains a battery for the real-time clock. Improper handling can shorten battery life and damage the device. Do not disassemble, modify, convert into a new product, puncture or damage the device or the battery. Do not expose the device to fire or extreme conditions that could cause an explosion or other hazards.
  • Install the Smartboatia Hub at least 2 metres away from radio equipment, compasses and radar to avoid interference.
  • Never install the Hub in the engine room; the high temperatures there can cause damage.
  • Although the Hub is splash-proof, we recommend installing it inside the vessel in a dry location for optimal function and safety.
  • The Hub is built for recreational boats and is not suitable for commercial shipping. It supports your navigation, but it is not an approved navigation device and does not replace official charts, approved navigation equipment or good seamanship. The skipper always remains responsible for safely operating the boat.

To the handbook
